I. Introduction
The core strength of a professional sports field is never limited to a flat track or a compliant competition area. It is also found in the concealed works beneath the surface and around the field edge. As the "respiratory system" of a sports field, the drainage system is an essential facility in World Athletics field construction. The Track and Field Facilities Manual clearly requires all formal competition and training venues to be equipped with standardized drainage channels and supporting drainage facilities, so that scientific drainage can prevent ponding, surface damage, base settlement, and related problems.
Whether the venue is a professional competition stadium, a school sports ground, or a public fitness facility, the design, construction, and maintenance of the drainage channel system directly determine operational safety, service life, and competition compliance. High-quality drainage facilities support training and events in rainy conditions, reduce the risk of slipping and falling, and protect synthetic surfaces, turf, and mineral surfaces as much as possible. They also lower maintenance costs and form the foundation for long-term venue operation.
II. Key Points
Based on official World Athletics standards and industry practices for sports field construction, the key points for sports field drainage channels and supporting facilities can be summarized into five areas, covering design, structure, function, construction, operation, and maintenance:
Core Positioning:
Drainage works are essential concealed works for sports fields. They perform three functions: collecting surface rainwater, guiding underground seepage, and removing ponding from the venue. They are the main barrier protecting field safety and facility integrity.
System Components:
A complete drainage system includes six core modules: ring drainage channels, single-inlet drainage pipes, catch basins, inspection wells, main drainage pipes, and anti-seepage/filter layers. Each module has a defined role and works together to discharge water efficiently.
Compliance Standards:
Sports fields mainly use surface drainage. The track surface must strictly follow World Athletics requirements for slope, dimensions, and materials. The transverse slope of the track shall be no more than 1.0%, and the longitudinal slope no more than 0.1%. Pipe flow velocity, channel dimensions, and drainage spacing all have clear tolerance requirements.
Zone-Specific Design:
Different drainage layouts should be adopted for the track, field-event landing areas, turf infield, steeplechase water jump, and other zones, matching the drainage requirements of each surface type.
Long-Term Operation and Maintenance:
Sports field drainage channels and supporting facilities should include sand prevention, seepage prevention, and anti-clogging measures. Regular cleaning and maintenance can effectively prevent common issues such as pipe siltation, water accumulation in the base, and field deformation.
III. Detailed Analysis and Explanation
A. Classification and Functions of Core Facilities
A sports field drainage channel is not a single trench, but a systematic facility with clearly divided functions. Its modules are designed to meet World Athletics field construction standards:
Ring Drainage Channel (Main Drainage Channel):
As the primary drainage facility, the ring drainage channel is installed around the 400 m standard track, with its total length matched to the field scale. It is usually connected to 6 to 8 catch basins or inspection wells. Node spacing should be determined through hydraulic calculation and actual site conditions to ensure smooth drainage. The channel may use a polyester hollow channel or a concrete structure, with removable top covers. The slot width is generally controlled at 10 to 25 mm depending on the water inlet method. It collects rainwater from the track and surrounding areas and acts as the main route for venue drainage.
Single-Inlet Drainage Pipe:
Installed around the track in an embedded manner and equipped with sand prevention devices, each inlet should provide a water intake area of at least 0.001 m2. For non-permeable synthetic surfaces, pipe spacing should be no more than 2.5 m. For permeable surfaces and mineral surfaces, spacing should be no more than 5.5 m. These pipes guide localized ponding precisely and cover drainage blind spots not fully handled by the ring channel.
3. Catch Basins and Inspection Wells:
These connect the drainage channels with the main pipes. Their dimensions should match the channel specifications. Built-in sand prevention structures allow sediment and debris to settle, helping prevent pipe blockage. They also serve as maintenance access points for later inspection of leakage, siltation, and other issues, making them key nodes for system maintenance.
4. Main Drainage Pipe:
Main drainage pipes are divided into closed pipes and perforated pipes. The minimum flow velocity should be 0.5 m/s and the maximum 3 m/s, with the pipe slope strictly controlled at 0.3% to 0.5%. They transport water collected from catch basins and channels to the receiving basin, enabling rapid discharge.
5. Anti-Seepage and Filter Layer:
Installed above and below the drainage layer, this layer uses high-weight geotextile and anti-seepage membrane to prevent sediment from entering pipes and to stop groundwater backflow. It protects the field foundation structure and helps prevent base softening and settlement.
B. Zone-Based Drainage Design Standards (World Athletics Requirements)
Because surface materials and structural conditions differ across sports areas, drainage layouts must be designed by zone to ensure there are no drainage dead spots:

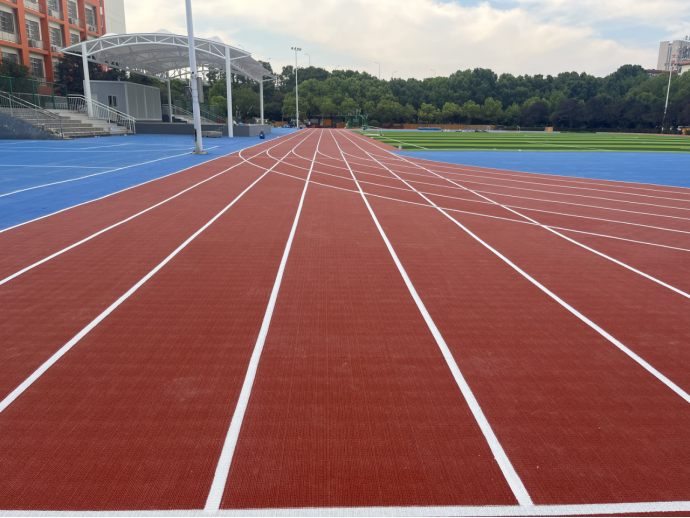

Synthetic Track Area:
A combined system of ring channels and embedded pipes is used. With a 1.0% transverse slope, rainwater is guided inward and discharged quickly through the surrounding drainage facilities, preventing surface ponding from affecting running balance.
Field-Event Landing Areas:
Dedicated drainage layers and grating drainage structures are installed at the bottom of long jump and triple jump sand pits. Drainage holes and dedicated pipes are reserved below shot put, discus, and hammer throwing circles to solve ponding in low-lying areas and prevent muddy sand boards or field collapse.
Turf Infield Area:

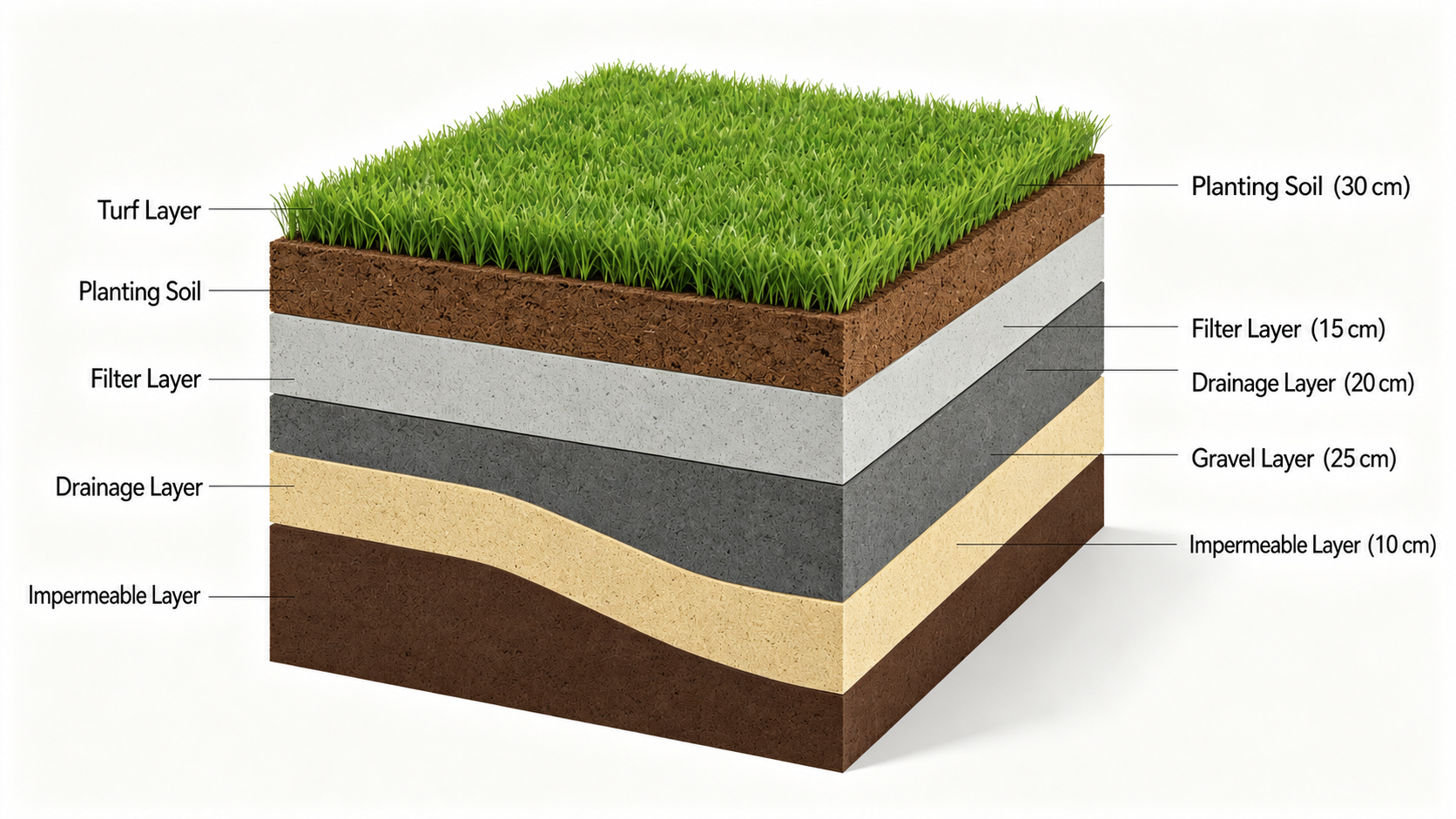

A combined infiltration and drainage system is adopted. Underground drainage pipes are spaced 4 to 6 m apart and paired with a 100 to 150 mm drainage layer. By using the turf surface permeability, rainwater is infiltrated and guided away, preventing turf root rot and base softening caused by ponding.
Steeplechase Water Jump Area:
Special cast iron or plastic drainage pipes and sliding valves are installed to quickly empty the water jump and drain surrounding ponding, meeting the dry/wet transition needs of steeplechase events.
C. Core Technical Requirements for Construction
According to the Track and Field Facilities Manual and domestic sports field construction standards, drainage channel construction must strictly control three key indicators. Excessive deviation may prevent the venue from passing competition-field certification:

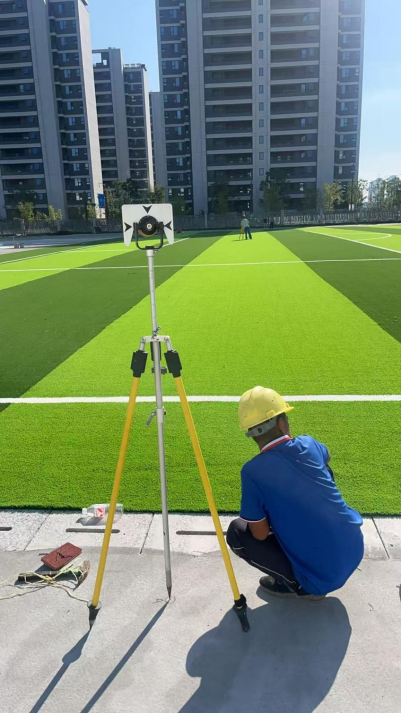

Slope Accuracy Control:

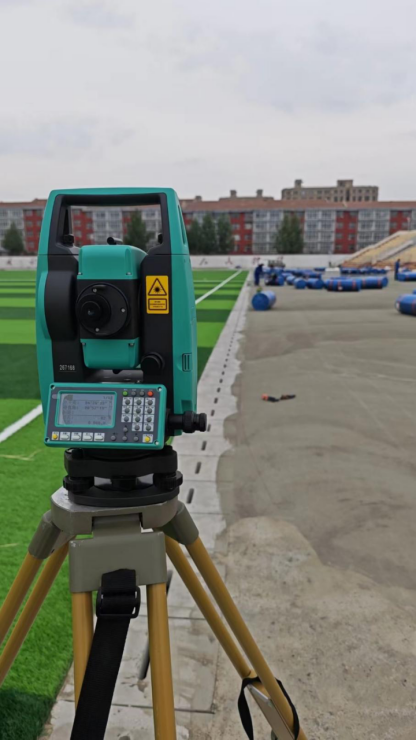

The transverse drainage slope of the track shall be no more than 1.0%, and the longitudinal slope in the running direction no more than 0.1%. The main drainage pipe slope should be 0.3% to 0.5%, with slope deviation controlled within +/-0.3%, ensuring natural rainwater flow and no residual ponding.
Structural Accuracy Standards:
Concrete channels should meet bedding requirements for general non-load-bearing structures, with compressive strength of at least 15 MPa and a bottom thickness of at least 200 mm. Pipe joints should be sealed with rubber rings to prevent leakage. The horizontal and elevation deviations of all drainage facilities should be no more than 20 mm, ensuring compliance with field flatness requirements.
Material Suitability Requirements:
Competition-level venues should preferably use corrosion-resistant polyester, stainless steel, and high-strength concrete materials. These materials resist aging and rolling loads and are suitable for frequent competitions and training. Anti-seepage and filter structures should be installed in the base to balance drainage performance with field stability.
D. Core Value and Benefits
1. Protecting Sports Safety:
A proper drainage system eliminates ponding and muddy conditions, reduces slipping and falling during running, jumping, and throwing, and supports fair and safe training and competition.
Extending Field Service Life:
According to relevant standards, the drainage system should remove ponding within 2 to 3 hours after heavy rain stops. This prevents synthetic surfaces from blistering, fading, and aging due to soaking, and also prevents soil base settlement and turf decay, significantly reducing repair and renovation costs.
Meeting Competition Certification Requirements:
Standardized drainage facilities are required for World Athletics venue certification and for acceptance of competition venues at all levels. Without a compliant drainage system, a venue cannot host formal track and field events.
Improving Venue Utilization:
During and after rain, ponding can be discharged quickly and the field can return to use sooner. This avoids the cycle of ponding during rain and muddy conditions afterward, greatly improving how often the venue can be used.
IV. Conclusion
Sports field drainage channels and supporting facilities are often overlooked by the public, yet they are crucial core works for the venue. The standardization of their design, construction, operation, and maintenance directly determines field safety, compliance, and durability. Unlike ordinary municipal drainage, a sports field drainage system must closely follow World Athletics-specific standards and address four key requirements: slope accuracy, zone-specific adaptation, seepage and blockage prevention, and long-term stability. The goal is fast drainage, precise water guidance, and durable protection.
Whether the venue is a professional competition stadium or a daily training field, only standardized and systematic drainage facilities can fundamentally prevent ponding risks, protect the sports surface and foundation structure, safeguard athletes, and meet acceptance standards for competitions at all levels. Precise concealed works are the real foundation of a high-quality sports field.
V. Frequently Asked Questions

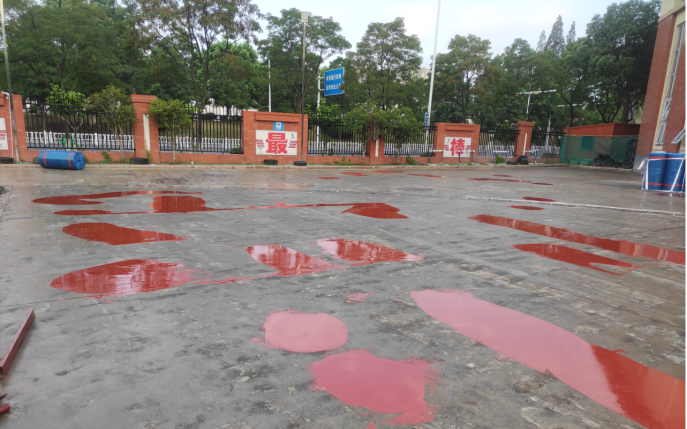

Q1: What are the main causes of poor drainage and ponding after rain on a sports field?
A1: The main causes fall into three categories. First, non-standard construction, such as excessive slope deviation or misaligned pipes, prevents rainwater from flowing naturally. Second, facility blockage occurs when catch basins and channels are not cleaned for a long time, allowing sediment and debris to clog the pipes. Third, poor zone-specific design leaves drainage blind spots, especially in field-event landing areas and low-lying zones without dedicated drainage facilities. Strict construction according to World Athletics standards, combined with regular cleaning and maintenance, can solve this problem.
Q2: What is the difference between drainage facilities for ordinary fields and competition-level venues?
A2: The main differences are accuracy, materials, and supporting standards. Ordinary public fields generally only need basic channel drainage, with lower requirements for slope and dimensional accuracy. Class I and Class II competition venues require a complete standardized drainage system, with strict control of slope deviation, pipe flow velocity, and facility spacing. They also use corrosion-resistant, high-strength materials and include complete anti-seepage, sand prevention, and inspection structures. They must pass World Athletics technical certification and meet the needs of frequent, high-standard competitions.
Q3: Do drainage facilities need regular maintenance? What does maintenance include?
A3: Yes. Regular maintenance is essential for long-term drainage performance. Routine maintenance mainly includes cleaning sediment and debris from channels, catch basins, and pipes to prevent blockage; checking pipe joints and covers for integrity and repairing damaged or leaking parts promptly; inspecting drainage slope and water flow before the rainy season; and removing accumulated debris after rain to prevent residual water from damaging the field base.
Q4: Are base settlement and synthetic surface blistering related to the drainage system?
A4: They are closely related. If the drainage system fails and water cannot be discharged in time, rainwater will seep into the field base for extended periods, causing soil softening, settlement, and collapse. At the same time, a synthetic surface soaked for too long may blister, crack, fade, or delaminate. More than 80% of surface damage and base deformation problems on sports fields originate from non-compliant drainage systems or inadequate maintenance.
Q5: Can the same drainage facilities be used for turf athletic fields and synthetic tracks?
A5: No. A synthetic track is a non-permeable surface and relies on surface channels and embedded pipes to collect and discharge water quickly. A turf field is a permeable surface and requires an underground infiltration/drainage layer and perforated pipes to guide water away. The two systems differ greatly in drainage coefficient, facility spacing, and structural design. Using one system for both may cause poor drainage and field damage, so each zone must be designed separately.
