When schools, stadiums, and community venues purchase a sports field, attention often goes first to the visible prefabricated rubber surface: environmental safety, shock absorption, slip resistance, and color. Yet many long-term failures begin in the layers that no one sees after installation.
Blistering, cracking, local settlement, adhesive failure, standing water after rain, and large-scale damage within three to five years are rarely caused by the roll surface alone. In most cases, the root cause is the underground base system - the invisible skeleton of the track.
As a specialist in prefabricated track systems, Huadong Sports manages the full sports-field construction chain. This article explains the subgrade, base-layer structure, and key control standards that help a running track last significantly longer.

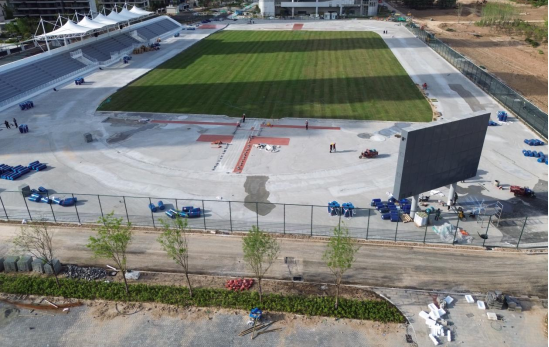

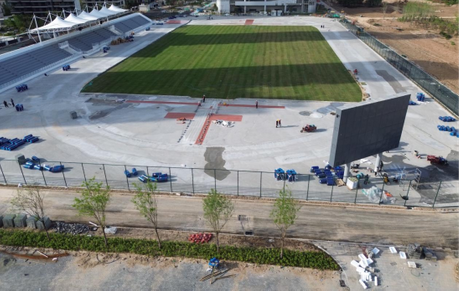

A durable sports field is built from the bottom up. Each layer has clear requirements for compaction, thickness, aggregate size, and drainage performance so that it can properly support HUADONG prefabricated rubber track rolls.
Natural soil subgrade: Remove organic soil, roots, silt, and other weak soil. Compact in layers until overall compaction exceeds 95%. Keep soil moisture at approximately 8%-12% to reduce future uneven settlement. For soft soil areas, replace and reinforce the base with graded sand and gravel. This is the deepest load-bearing foundation of the entire field.
Cement-stabilized crushed stone layer: Use5-20mm aggregate, spread and compact it in layers, and keep compaction at 95% or higher. This layer separates moisture, distributes pressure, and helps stop ground vapor from rising into the prefabricated roll system, reducing the risk of blistering.
Asphalt concrete load-bearing base: A standard80mm modified asphalt layer provides strength while supporting micro-drainage, with air voids controlled at about6%-10%. Flatness should stay within 3mm when checked with a 3m straightedge, creating a smooth and stable surface for roll installation.

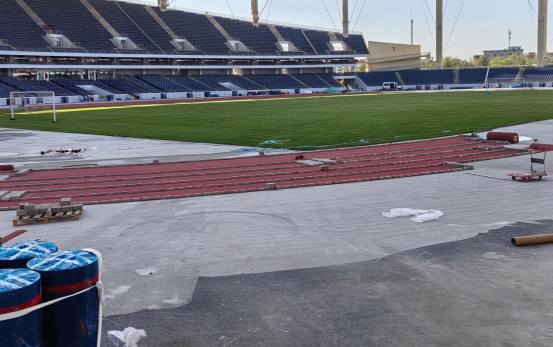

Prefabricated rubber roll surface: The visible sport layer is HUADONG GREENGUARD Gold low-emission prefabricated track material. It is a homogeneous roll system designed for shock absorption, knee protection, school use, and professional venues. Its service life still depends on the stability of the three layers below.
Insufficient subgrade compaction: Long-term traffic and water soaking can cause settlement, stretching, tearing, and cracking at roll seams.
Thin or poorly compacted cement-stabilized layer: Moisture can migrate upward, causing large-area blistering, debonding, and high repair costs.
Insufficient asphalt thickness or poor flatness: Local stress becomes uneven, spike-shoe areas wear faster, and the track loses balanced shock absorption.

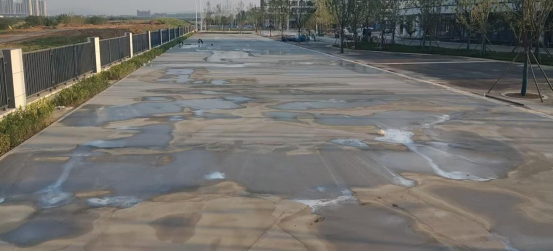

No proper drainage slope or trapped water in the base: Freeze-thaw expansion in winter and bottom soaking in summer can cut the service life of the venue dramatically.
Many low-price field projects simplify base work, reduce asphalt thickness, or skip repeated compaction. The surface may look fine at handover, but damage often appears after only two or three years. Over the full life cycle, the cheaper option can become the more expensive one.
Based on years of experience with stadiums and school sports fields, Huadong applies process-based inspection standards from the first site survey to final roll installation.
1. Early site survey: Before construction begins, the full site elevation is measured. Foundation plans are adjusted for regional conditions such as heavy rainfall in southern areas or frost heave in northern areas. Drainage channels are planned at the same time to create an underground breathing system that reduces water damage to the base.
2. Layer-by-layer compaction and testing: Native soil, crushed stone, and asphalt are each rolled repeatedly with professional compaction equipment, typically five to eight passes. After each layer is completed, compaction is tested on site. If the layer does not meet the standard, the next process does not begin.

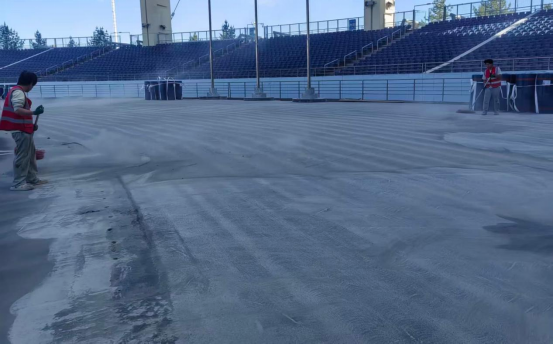

3. Laser leveling and sufficient curing: Asphalt and cement bases are leveled with laser equipment to keep the overall slope even. New bases must complete the required curing period. Prefabricated rolls are never installed on a base that has not dried properly, preventing moisture problems at the source.
4. Adhesive compatibility with the roll system: A high-quality base is paired with dedicated track adhesive and the HUADONG prefabricated roll backing structure. This improves bond strength and helps prevent edge lifting or seam opening under outdoor heat and rain.
Longer service life: A standardized four-layer base with HUADONG prefabricated rolls can support more than 15years of stable use for school fields and up to 20years for professional competition or training venues.
Lower maintenance cost: Fewer cracks, blisters, and repairs help schools and venues reduce renovation and maintenance budgets.
Stable sports safety: A base without settlement or uneven spots keeps impact absorption consistent and helps reduce ankle and knee injury risks for students and athletes.
Long-lasting environmental performance: Proper drainage and moisture control help prevent odor, mold, and dampness. Together with GREENGUARD Gold low-VOC rolls, the field maintains a healthier sports environment over time.
The smooth visible track surface is only the outer layer of a sports field. The subgrade and base hidden underground are the real structural framework that determines whether the venue can perform safely for many years.
Huadong Sports is more than a prefabricated rubber track material supplier. We provide integrated sports-field solutions covering site survey, base design, standardized construction, roll installation, and long-term maintenance. From primary and secondary school renovations to community multi-sport areas and Olympic-level training venues, we control hidden foundation works with strict standards to build safe, durable, and environmentally responsible sports spaces.
A1: Direct installation is not recommended. Old bases often have settlement, cracks, sanding, or failed drainage. The site should first be inspected for compaction and flatness. Severely damaged areas need excavation and base rebuilding. Minor defects may be repaired, leveled, and moisture-proofed before surface installation.
A2: A standard layered structure already provides water separation. The cement-stabilized crushed stone layer helps block capillary moisture. In rainy areas, the field slope is increased, side drainage channels are added, and soft soil may receive thicker gravel replacement. Extra waterproof coating is usually unnecessary and may trap water inside the base.
A3: For professional athletics tracks, an 80 mm modified asphalt base is preferred because it matches the roll system elastically, offers better flatness, and is less prone to cracking. For smaller school projects with limited budgets, a C25 concrete base can be used, but cutting joints and anti-seepage treatment are required to reduce expansion-related cracking.
A4: Asphalt bases should cure for at least 14days. Cement concrete bases should cure for at least 28 days. Before installation, ground moisture must be tested. If moisture is too high, drying time must be extended to prevent blistering and adhesive failure.
A5: A standardized base may slightly increase the upfront investment, but it can more than double the practical service life of the track. It also reduces large-scale renovation every three to five years and lowers the full life-cycle cost while improving user safety.
A6: Remove silt and organic soil first, then replace it with graded sand and gravel compacted in layers. The cement-stabilized crushed stone base can be widened and thickened, blind drainage pipes can be added, and compaction should be tested layer by layer. Lime-soil reinforcement may be used when necessary.
