I. The Quick Answer: The hardest part of track line marking is not drawing straight lines, but controlling error tightly enough to pass inspection
Standard line marking is not a simple finishing step after the running track surface is complete. It is a precision operation. What determines whether a venue can pass inspection and function as a compliant competition facility is usually not just whether the lines look white and clean, but whether the staggered starts are calculated correctly, whether the curve markings remain smooth, and whether the coating bonds reliably to the surface.
The most common rework cases on site are rarely full-surface failures. More often, a few key details go wrong. The surface may look dry while moisture is still trapped underneath. Curve control points may be spaced too far apart, which creates visible angular segments instead of a smooth arc. Or the crew may try to spray too heavily in one pass to save time, only to end up with runs, peeling, or rough edges later.
If the project must be delivered in line with World Athletics rules or school acceptance standards, line marking cannot be treated as simple white paint work. Measurement, layout, materials, application, and curing all need to work together.
After a synthetic track or prefabricated roll surface is installed, line marking should not begin just because the top surface appears dry. In many projects, the surface must cure for at least 7 full days. In low-temperature, rainy, or poorly ventilated conditions, extending that by another 3 to 5 days is common.
Site checks should go beyond color and touch. A more practical approach is to inspect whether the surface is still releasing moisture, whether loose dust remains, and whether repaired areas have fully stabilized. If moisture is still trapped within the base or the top layer, adhesion problems often show up later in the markings.
Line marking often fails when conditions look “close enough.” If temperature, humidity, or surface condition is unstable, the risk of defects rises quickly. A common working range is 10-35°C, with relative humidity below 85%. Rain, heavy fog, and strong wind are generally unsuitable conditions for marking work.
One detail many crews underestimate is the period immediately after rainfall stops. The top surface may dry quickly, but moisture can still remain inside the pores of the synthetic layer. If marking starts too early, bubbling, separation, or localized whitening often follows.

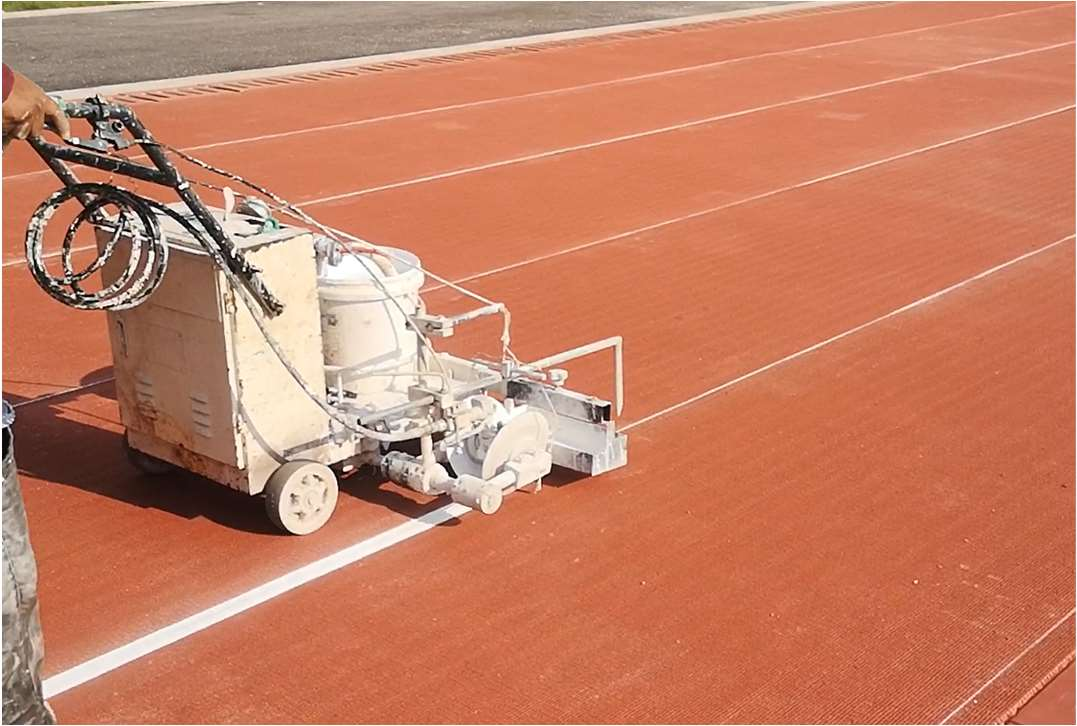

Standard track marking is not a situation where “whatever is available” will do. Total stations, steel tapes, airless spraying equipment, curved templates, masking tape, and guide blades all directly affect final precision and edge quality.
Materials matter just as much. Higher-level competition venues often use two-component polyurethane marking paint. Schools and community venues more often prefer low-odor, environmentally friendlier water-based systems. Thermoplastic marking materials may be durable, but they are not suitable for direct use on synthetic track surfaces or prefabricated rolls because the heat can damage the top layer.
Many people focus on whether the sprayed line looks neat and straight. In reality, the part that most often determines whether the venue passes inspection is the measurement and layout that happens first. Once the layout is wrong, even a clean-looking line is still in the wrong place.

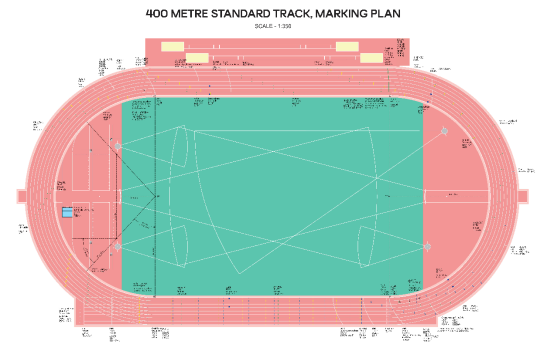

On a standard track, a common process is to use a total station to lock in the curve centers, the straight-to-curve transition points, the finish-line baseline, and other key control points before laying out lane lines, start lines, break lines, and relay zones. The 28 control points often referenced in World Athletics practice exist precisely to compress error before painting begins.
Straight sections are usually easier to handle. The real difficulty is often in the curves. If control points are too widely spaced, or if the crew tries to “smooth it out” by eye, the final result can show visible kinks instead of a proper continuous arc.

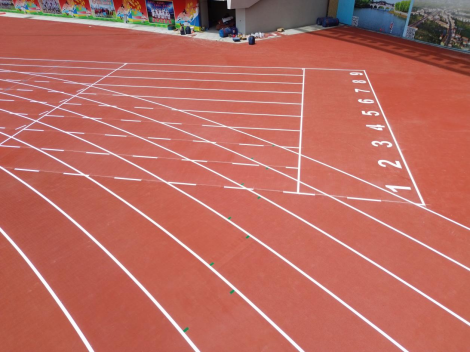

Start lines are another common failure point. The staggers for 200 m, 400 m, and 800 m cannot be estimated roughly. Competition distances may allow a positive tolerance, but not a negative one. If a line is positioned short, the result is not a small touch-up. It usually means full rework of that section.
Many rough-edge defects are not caused by the spray process itself. They come from poor protection after layout. Masking tape that is not pressed firmly enough, curve templates that do not sit cleanly, or reference marks that are shifted by foot traffic can all reduce edge quality before painting even starts.
A safer approach is not to rush forward in one continuous push. It is better to recheck critical dimensions after layout, then complete edge sealing and template verification. Spending a bit more time here often saves much more time in rework later.
Different venues prioritize different things. Competition sites usually care more about abrasion resistance, UV resistance, adhesion, and glare control. School projects often place greater weight on environmental performance, odor, and long-term maintenance cost.
The table below gives a practical comparison of three common marking material categories.
Material type | Typical application method | Main advantages | Better suited for |
Two-component polyurethane marking paint | Airless spraying, applied in thin coats | Strong adhesion, good wear resistance, strong weather resistance, suitable for higher-standard use | Professional competition venues, standard stadiums, training centers |
Water-based cold-applied marking paint | Sprayed at ambient temperature | Environmentally friendlier, lower odor, relatively convenient to apply | Schools, community venues, everyday training facilities |
Thermoplastic marking material | Hot melt screed application | Greater build thickness, durable in road-style applications | Hard-base areas; not recommended for direct use on synthetic track surfaces or prefabricated roll systems |
If a two-component material is mixed incorrectly, it may either cure too quickly or remain unstable after application. If a water-based material is not fully mixed, color consistency and coverage can vary visibly.

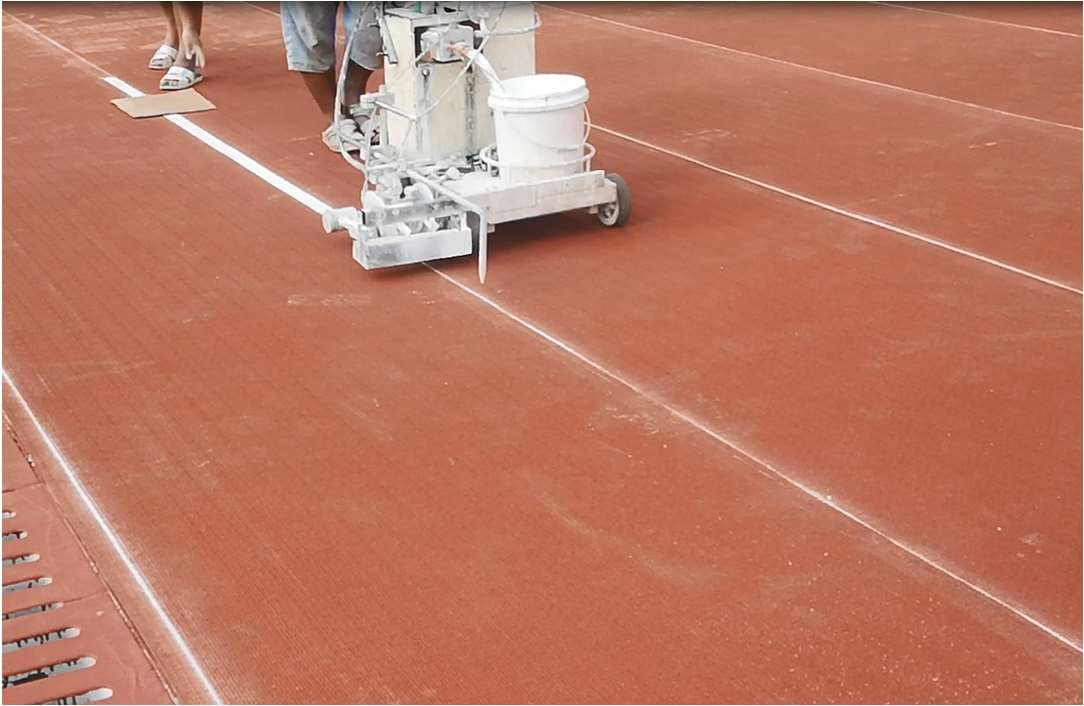

Thickness is another issue. To save time, some crews try to apply a heavy coat in one pass. That is exactly what tends to create sagging, bubbling, and heavy paint edges. A more common and more stable practice is to spray two thin coats and keep the dry-film thickness within a reasonable range of about 0.8-1.5 mm.
Lane lines may look regular, but if the base layout is off, the whole line shifts with it. On a standard 400 m track, lane width is often controlled at about 1.22 m, while line width is typically 5 cm, and lane width is usually measured including the line on the right.
The finish line must also do more than look straight. It needs to support accurate finish reading and image recognition. If the edge is weak, overly reflective, or visibly uneven in thickness, the problem is not merely cosmetic. It affects how the venue is used.
These markings cannot simply be placed “roughly where they belong.” Start lines involve stagger calculation. Break lines involve transition position. Relay zones involve zone length and edge clarity. Any one of these being off can affect rule compliance directly.
That is why these markings are usually better handled in a sequence of coordinates first, templates second, and spraying last, rather than being adjusted on the fly by eye.

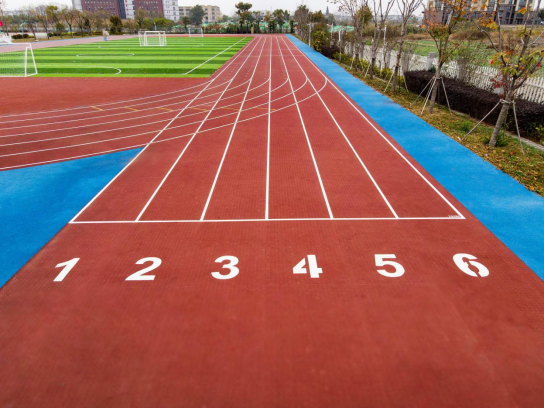

On poorly controlled projects, lane numbers, hurdle marks, and auxiliary symbols are often treated as things to add casually at the end. In practice, these are exactly the details that reveal whether a crew is working to a real standard.
If number edges are blurred, templates are misaligned, or short lane marks vary in length, the whole venue starts to look like something that is usable but not truly professional. That matters in both school acceptance and formal venue delivery.
In the first 24 hours after marking, rain is not always the biggest threat. Poor site closure often is. If people walk across the area too early, drag equipment through it, or move materials over it, local film damage can occur and later repairs remain visible.
This step is simple, but often overlooked. Barriers, warning signs, and site handover control all need to be in place.
Many projects assume that once 24 hours have passed, the surface is “already dry” and normal access can resume. People, equipment, and even spikes return too early. Short-term problems may not appear immediately, but later flaking, whitening, and accelerated wear are often linked to insufficient curing control during this stage.
The safer approach is to treat the first 7 days as the real stabilization period. On outdoor sites especially, any weather change can amplify early weakness.
Track marking acceptance cannot stop at whether the lines look white and even. Dimension rechecks, adhesion, wear performance, environmental compliance, and full construction records are all part of a standard project handover.
Many venues are rejected not because the entire job is poor, but because key records are missing or a few critical dimensions were never fully rechecked. That issue is practical and very common.
Usually not. Many projects require at least 7 full days of curing, and low-temperature or rainy conditions often require even longer. If the surface has not stabilized internally, peeling or local delamination is much more likely.
Usually the problem is not the spray gun itself. It is more often caused by insufficient control-point density, poor curve templates, or crews trying to smooth the line by eye. Curved lines should be laid out with denser coordinate points and proper templates.
Because the application temperature is high enough to damage the synthetic or rolled top surface. That can lead to blistering, cracking, or large-scale separation later. It is better suited to hard-base areas than to standard synthetic track systems.
Two common reasons are unsuitable material selection for outdoor sports use and coating thickness that is too thin or applied too fast. The best prevention usually comes from proper material choice, two-pass thin spraying, and controlled curing.
That type of issue usually cannot be handled with a minor touch-up. If a competition distance is short of the required standard, the venue may fail acceptance outright. In serious cases, the markings must be removed and laid out again from the beginning.
Track marking may look like the final step, but it often determines whether the venue can actually be handed over as a professional facility. What creates the real difference is not just whether white lines exist on the surface, but whether the measurement was correct, the material choice was sound, the application was controlled, and the curing period was properly protected.
From a project-management perspective, two mistakes are especially costly. One is treating line marking as ordinary paint work. The other is compressing measurement and curing control in the name of speed. The first makes the venue look unprofessional. The second creates direct rework risk.
If the goal is to deliver a track that is compliant, easier to accept, and easier to maintain later, then the marking stage deserves to be managed as a technical process, not left until the end as a rushed patch-up operation.
